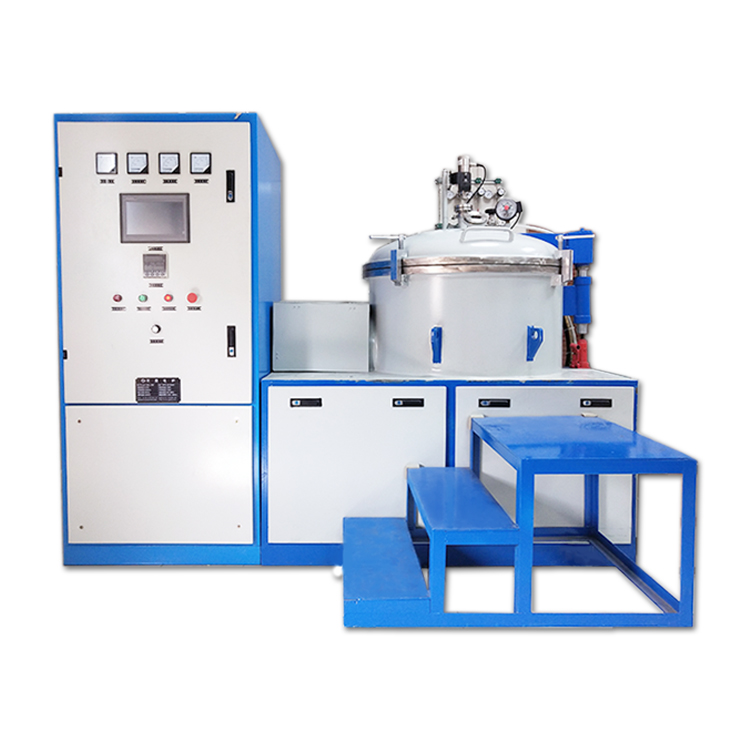

Experimental graphitization furnace
[Usage] :It is used for high temperature treatment and graphitization of carbon structural parts (products), C/C composite products, carbon fiber products, sintering graphitization of carbon fiber filament and other materials that can be sintered and melted in carbon environment.
Product advantage
Experimental graphitization furnace is a high-performance intelligent heating furnace introduced by our engineers and technicians who digest and absorb foreign temperature measurement, temperature control technology, intelligence, new material technology and furnace design technology. Suitable for high temperature treatment of materials (carbonization, graphitization, high temperature degassing, impurity removal, etc.) under vacuum or gas protection.
Features:
(1) Can reach 3200℃, the common temperature of 3000℃ high temperature furnace body, to meet the sintering and graphitization of various materials.
(2) Using digital display intelligent temperature control system, automatic, high precision temperature measurement and temperature control process, the system can be heated according to the given temperature curve, and can store a total of 40 200 sections of different process heating curve.
(3) Adopt internal circulation pure water cooling system, digital flow monitoring system;
(4) Comprehensive PLC water, electricity, gas automatic control and protection system.
Product Specification
Ultimate temperature |
|
The commonly used temperature | Normal Temperature -3000℃ |
High temperature volume | Φ 100*150mm, Φ 200*300mm, Φ 300*500mm, |
Working atmosphere in furnace | Vacuum, hydrogen, nitrogen, inert gases, etc |
Temperature uniformity | ≤±10℃ |
Temperature measurement | Far infrared optical temperature measurement (double connector automatic switch) |
Temperature measurement accuracy | 0.2~0.75% |
Temperature control | · Program control and manual control |
Temperature control precision | ±1℃ |
Limiting rate of heating | 80℃/min Empty furnace, depending on the volume of high temperature zone and furnace structure |
Power Supply | IGBT control, thyristor control |
Experimental graphitization furnace
[Usage] :It is used for high temperature treatment and graphitization of carbon structural parts (products), C/C composite products, carbon fiber products, sintering graphitization of carbon fiber filament and other materials that can be sintered and melted in carbon environment.
Product advantage
Experimental graphitization furnace is a high-performance intelligent heating furnace introduced by our engineers and technicians who digest and absorb foreign temperature measurement, temperature control technology, intelligence, new material technology and furnace design technology. Suitable for high temperature treatment of materials (carbonization, graphitization, high temperature degassing, impurity removal, etc.) under vacuum or gas protection.
Features:
(1) Can reach 3200℃, the common temperature of 3000℃ high temperature furnace body, to meet the sintering and graphitization of various materials.
(2) Using digital display intelligent temperature control system, automatic, high precision temperature measurement and temperature control process, the system can be heated according to the given temperature curve, and can store a total of 40 200 sections of different process heating curve.
(3) Adopt internal circulation pure water cooling system, digital flow monitoring system;
(4) Comprehensive PLC water, electricity, gas automatic control and protection system.
Product Specification
Ultimate temperature |
|
The commonly used temperature | Normal Temperature -3000℃ |
High temperature volume | Φ 100*150mm, Φ 200*300mm, Φ 300*500mm, |
Working atmosphere in furnace | Vacuum, hydrogen, nitrogen, inert gases, etc |
Temperature uniformity | ≤±10℃ |
Temperature measurement | Far infrared optical temperature measurement (double connector automatic switch) |
Temperature measurement accuracy | 0.2~0.75% |
Temperature control | · Program control and manual control |
Temperature control precision | ±1℃ |
Limiting rate of heating | 80℃/min Empty furnace, depending on the volume of high temperature zone and furnace structure |
Power Supply | IGBT control, thyristor control |
≤3200℃
