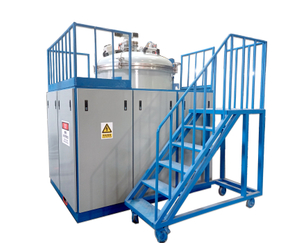

Bottom Discharge Graphitization Furnace

Bottom discharge graphitization furnace

[Usage] : It is mainly used for vacuum sintering of special composite materials or cemented carbide, copper tungsten alloy, titanium alloy and other alloy materials.

Product advantage

The lower discharging graphitization furnace is suitable for processing and

graphitization of large products, which greatly improves the convenience of materials in and out. It is suitable for high-temperature treatment of materials ( sintering,

graphitization, purification, etc.) under the protection of vacuum or atmosphere.

Characteristics of graphitization furnace under discharge:

It is welded by flange and cylinder group, and welded by various types of steel and steel plate to reinforce the load-bearing frame used to place the furnace body.

Adopts double butterfly water inter layer structure, furnace bottom after lifting through electric speed reducer reducer by synchronous bearing flexible drive, driven by electric screw bracket will be stable furnace bottom rising or falling, avoid graphite crucible in the process of rising and falling damage, lifting mechanism is equipped with upper and lower limit switch, furnace bottom fall in place after taking work carried out by production personnel.

Automatic can be set manually according to the user process requirements and equipment requirements, no manual switch, temperature control precision is accurate, easy to operate.

Product Specification
