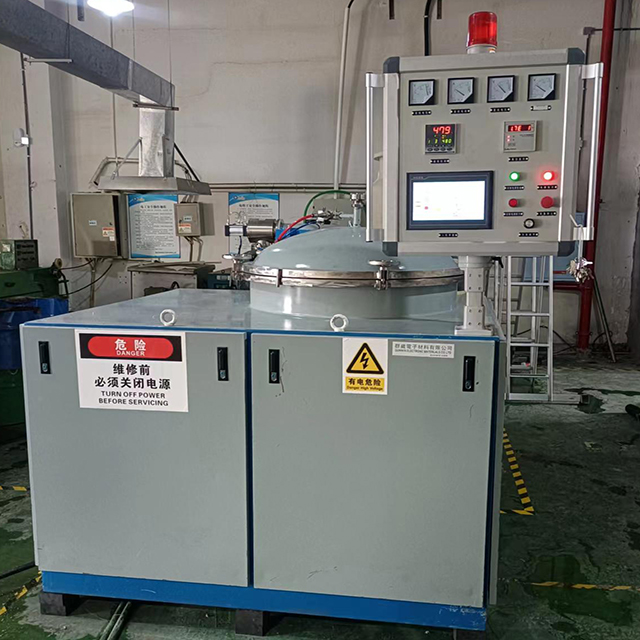

Integrated Graphitization Furnace

Integrated graphitization furnace is a kind of design product specially launched for the new carbon material industry. It is a high-performance intelligent heating furnace specially for university laboratories, scientific research institutes and enterprises and institutions. Suitable for high temperature treatment of materials (carbonization, graphitization, high temperature degreasing, impurity removal, etc.) under vacuum or gas protection.



It is used in carbon materials (products), carbon/carbon composites, synthetic graphene films, heat conduction materials, high temperature treatment and graphitization of graphene, carbon fiber rope, sintered graphitization of carbon fiber and other materials that can be sintered and melted in carbon environment.


 To reach the limit temperature of 3200℃, the common temperature of 3000℃ high temperature furnace, meet the sintering and graphitization of various materials.

 Using digital display intelligent temperature control system, automatic, high precision to complete the temperature measurement and temperature control process, the system can be heated according to the given temperature curve, and can store 40 sections of a total of 200 different process heating curves.

Adopt internal circulation pure water cooling system; Digital flow monitoring system.

Comprehensive PLC water, electricity, gas automatic control and protection system.

Product Specification

Ultimate temperature


Common temperature

Normal Temperature-3000℃

High Temperature Zone Volume


Working Atmosphere in furnace

Vacuum, hydrogen, nitrogen, inert gas, etc

Temperature Uniformity


Temperature Measurement

Far infrared optical temperature measurement (double connector automatic switch)

Temperature Measurement Accuracy


Temperature Control

Program control and manual control

Temperature Control Accuracy


Limit Heating Rate

200℃/min (empty furnace, depending on the volume of high temperature zone and furnace structure)

  Power supply

IGBT control, thyristor control
