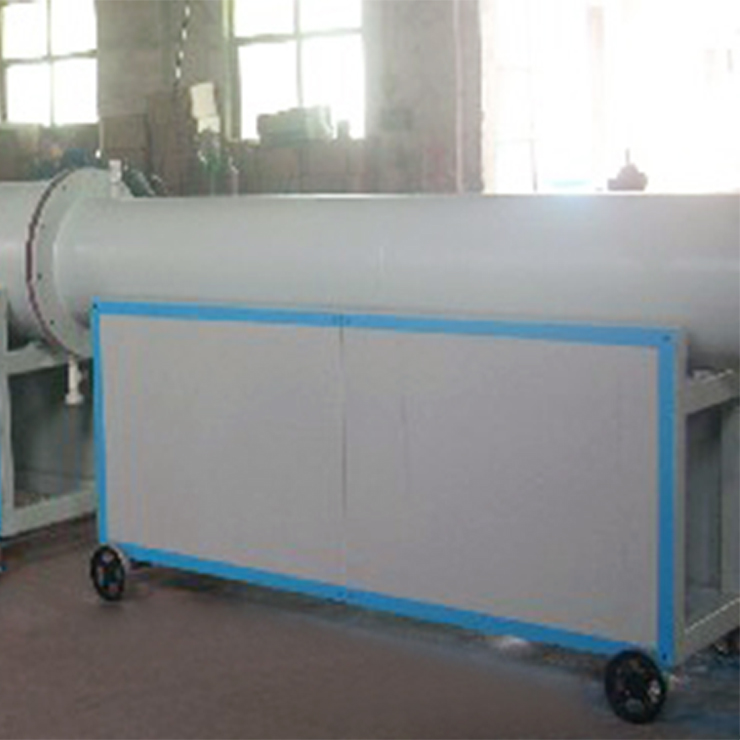

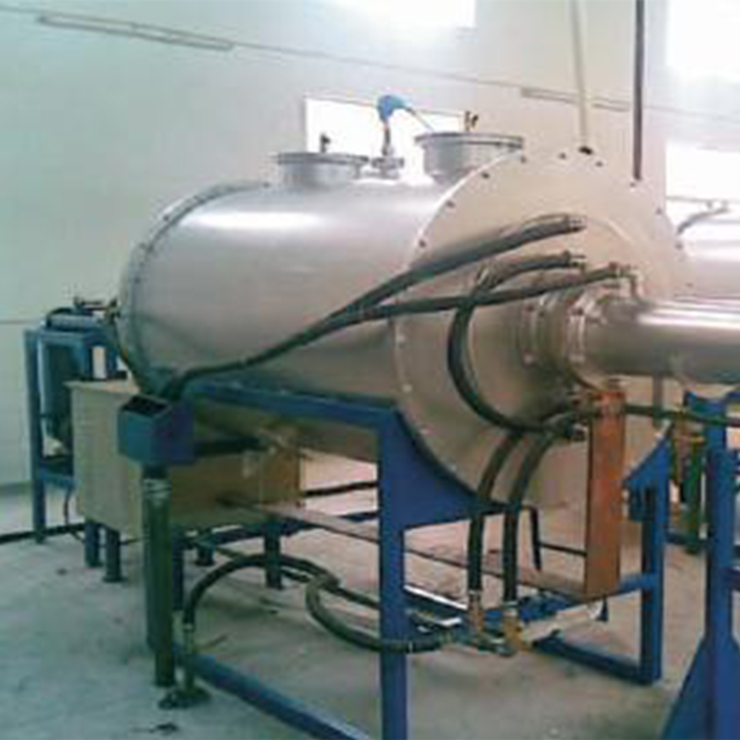

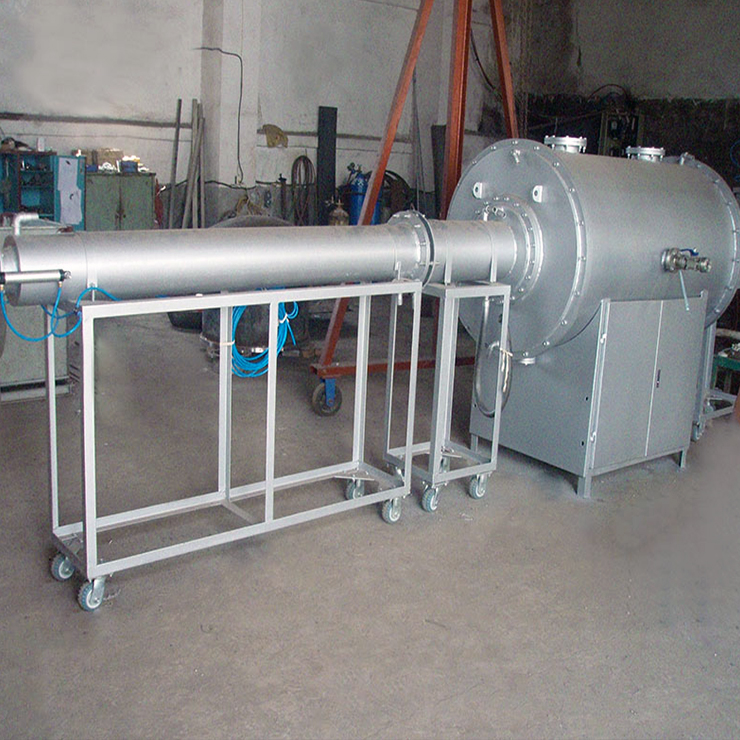

Graphite Boat Pushing Furnace

Graphite boat pushing furnace

Graphite pushing furnace uses graphite plate bearing graphite material box, with a push rod box after box to push to the heating area, in the atmosphere protection state of powder reduction, sintering of powder metallurgy products and other heat treatment.  Suitable for powder metallurgy processing and graphite material processing.

USES:

It is used for continuous high temperature graphitization purification of graphite powder and products, and can realize the purification process combining high temperature method and chemical method.  Its operating temperature can reach 2600℃, and can work continuously for a long time.  Good production efficiency, energy saving.  With on-line temperature measurement and temperature control system, the temperature in the furnace can be monitored in real time and adjusted automatically.

Features:

(1)Adopt new heating technology, high service temperature and long service life;

(2)Long service life of furnace tube, continuous production 20-30 days without stop the furnace;

(3) Continuous material in and out, good sealing performance, less gas consumption;

(4) Adopt push-boat production mode, continuous production can be continuously furnace;

(5) Automatic boat loading, pushing, discharging and reversing mechanism can be selected, with stable product quality and low labor intensity;

(6) The length of furnace body can be increased or decreased according to the actual situation of users;

(7)With remote control function, remote control, fault diagnosis and software upgrade;

(8) Three-phase power supply, three-phase power balance, stable performance.

Main technical parameters
