Vacuum Sintering Furnace

Vacuum/atmosphere sintering of cemented carbide, copper-tungsten alloy, tungsten,...
Availability:
Quantity:

2

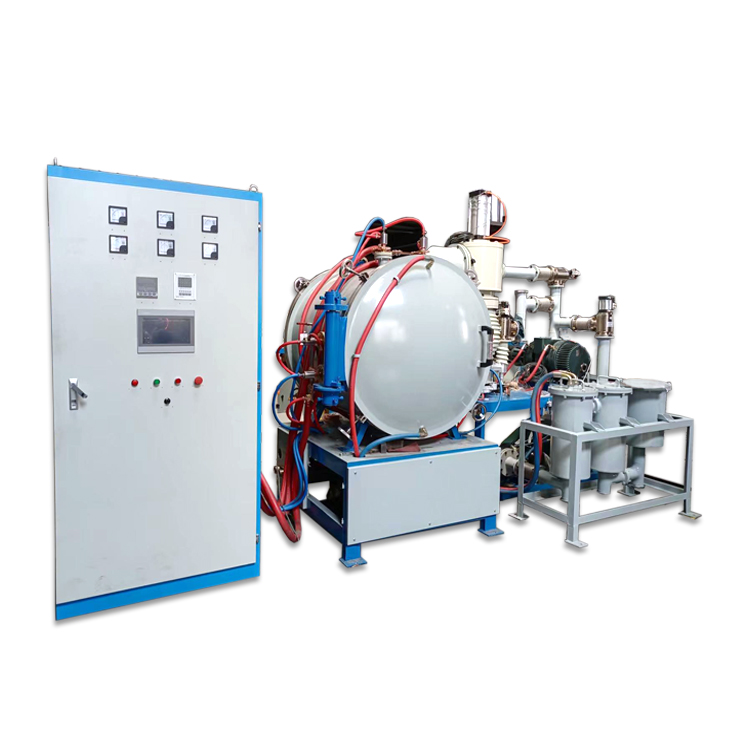

Vacuum sintering furnace

【Application】: vacuum/atmosphere sintering of cemented carbide, copper-tungsten alloy, tungsten, molybdenum, alnico-cobalt permanent magnet, SmCo5, Sm2Co17, Ndfeb, titanium alloy and other alloy materials.


Product  Advantage

Vacuum sintering furnace is the temperature measurement, temperature control technology, intelligent, new material technology and furnace design technology that our engineers and technicians digest and absorb. It is a performance intelligent electric furnace that is especially suitable for cemented carbide industry (process permits can also be applied to other industries).


The intermediate frequency induction sintering furnace produced by our company is an intermittent gas (vacuum) protection furnace.According to the needs of sintering process time, a single set of power supply can be configured with multiple electric furnaces, respectively for a single furnace to heat up and section of electric cooling, to achieve continuous work.


Features:
Ultra-high temperature furnace body within 2400℃ can fully meet the sintering of various materials.

Using digital display intelligent temperature control system, automatic precision to complete the temperature measurement and temperature control process, the system can be heated according to the given temperature curve, and can store 20 pieces of a total of 400 different process heating curve.

Adopt internal circulation pure water cooling system, digital flow monitoring system

High performance medium frequency contactor is used for automatic conversion of furnace body.

Comprehensive PLC water, electricity, gas automatic control and protection system.


Product Specification

Maximum Use Temperature

1600℃、2000℃、2400℃

High Temperature Volume

12L、45L、128L、192L、250L、375L、540L、648L

980L、1600L、2430L、3500L、10000L

Working atmosphere in furnace

· Vacuum,hydrogen, nitrogen,inert gases,etc

Temperature Uniformity

≤±10℃

≤±20℃

Temperature Measurement

Infrared optical temperature measurement,temperature measurement range  800~2400℃ or 0~2400℃

Temperature Control

Program control and manual control

Temperature Measurement accuracy

0.2~0.75%

Temperature Control accuracy

±1℃

±3℃

Limit heating rate

75℃/min

25℃/min
