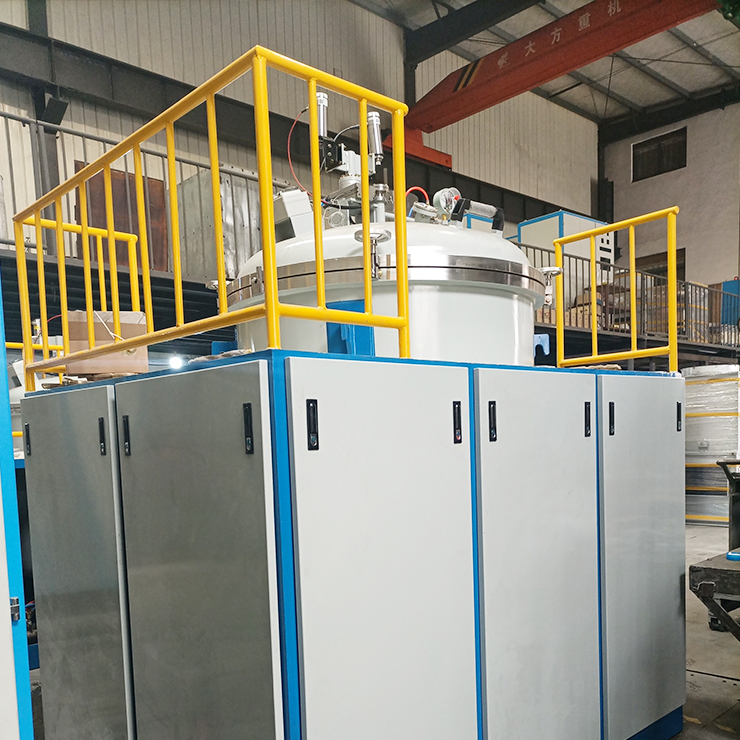

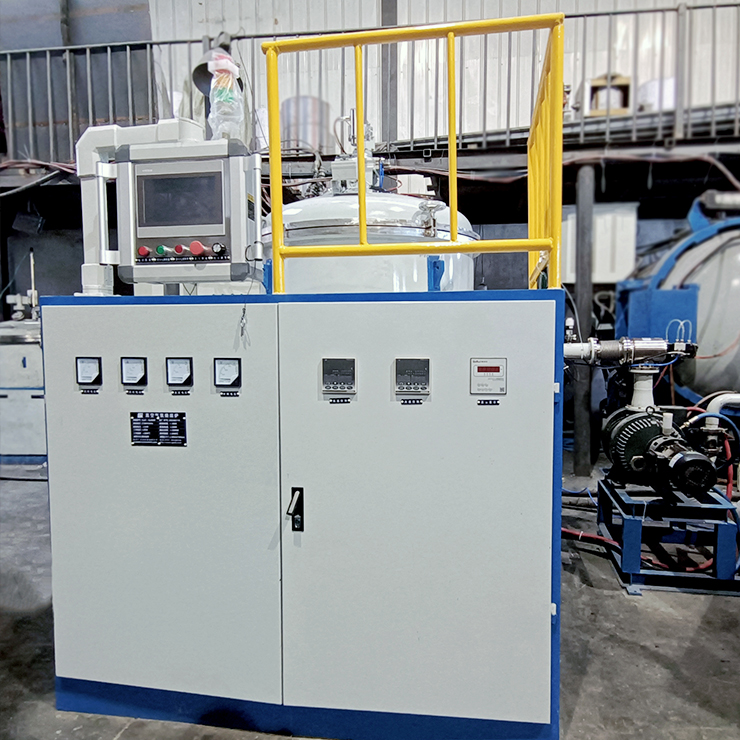

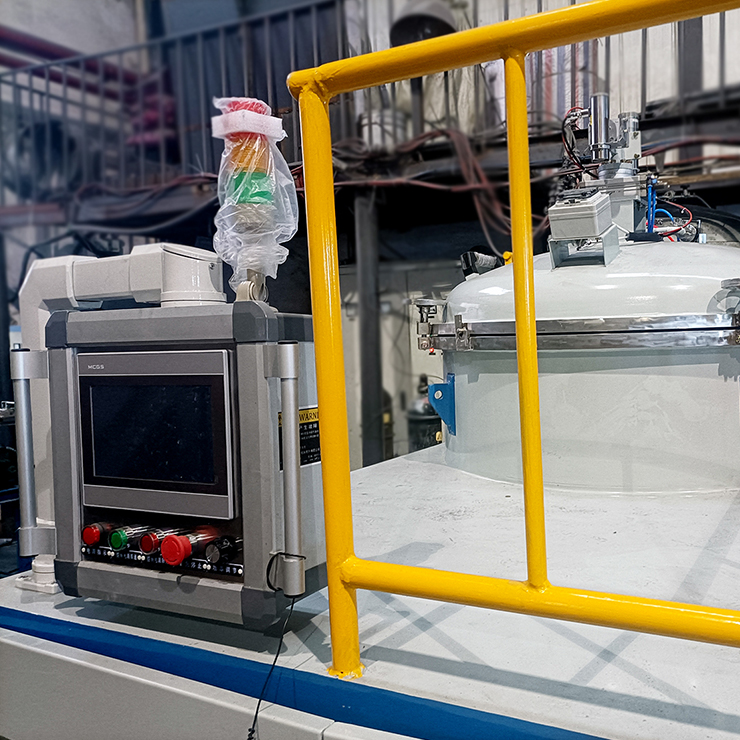

The atmosphere protective sintering furnace
Suitable for lithium battery materials, rare earth materials, magnetic materials, mineral materials, ceramic devices, refractory materials, activated carbon carbonization, metal powder and other new materials under the protection of atmosphere sintering treatment and reduction treatment, mainly tungsten powder reduction treatment, nitriding treatment and carbonization treatment.
Product Advantage
Features:
· 2200℃ ultra-high temperature furnace body, compatible with fine, medium and coarse granular WC powder and composite material carbonization heating process.
· Digital display programmable intelligent temperature control system is adopted to complete the temperature measurement and temperature control process with automatic precision. The system can heat up according to the given temperature rise curve, and can store 20 different process heating curves with a total of 400 sections.
· Adopt pure water cooling system and digital flow monitoring system.
· Performance medium frequency contactor is used for automatic conversion of furnace body;
· Comprehensive PLC automatic control and protection system for water, electricity and gas.
Product Specification
Use Temperature | 1800℃~3000℃ | 1800℃~2900℃ |
High Temperature Volume | 12L、45L、128L、192L、250L、375L、540L、648L | 980L、1600L、2430L、3500L、10000L |
Working atmosphere in furnace | Vacuum,hydrogen, nitrogen,inert gases,etc | |
Temperature Uniformity | ≤±10℃ | ≤±20℃ |
Temperature Measurement | Low temperature thermocouple temperature measurement, high temperature far infrared optical temperature measurement range 800~2500℃ or Normal Temperature 2200℃ | |
Temperature Measurement accuracy | 0.2~0.75% | |
Temperature Control | Program control and manual control | |
Temperature Control accuracy | ±1℃ | ±3℃ |
Limit heating rate | 75℃/min（Empty Furnace） | 25℃/min（Empty Furnace ） |
