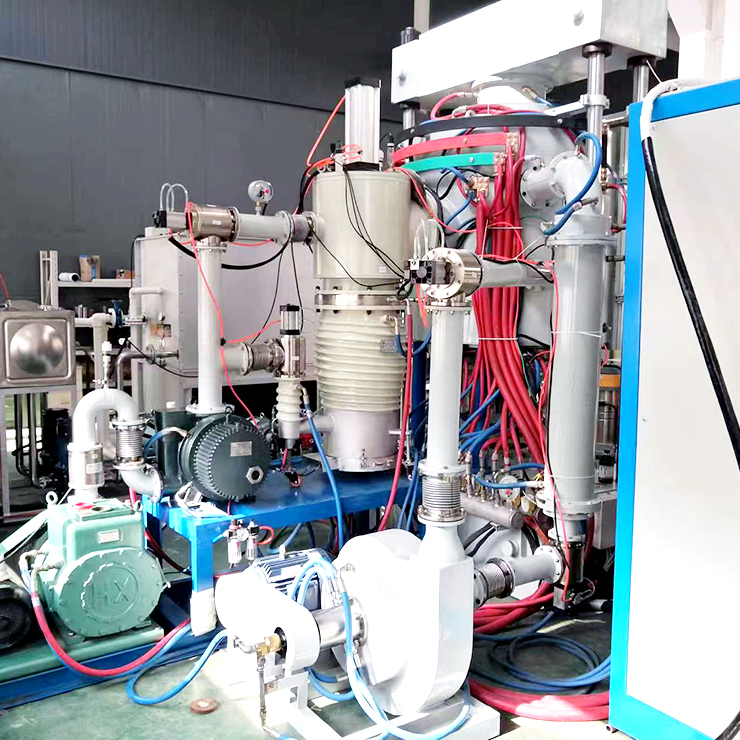

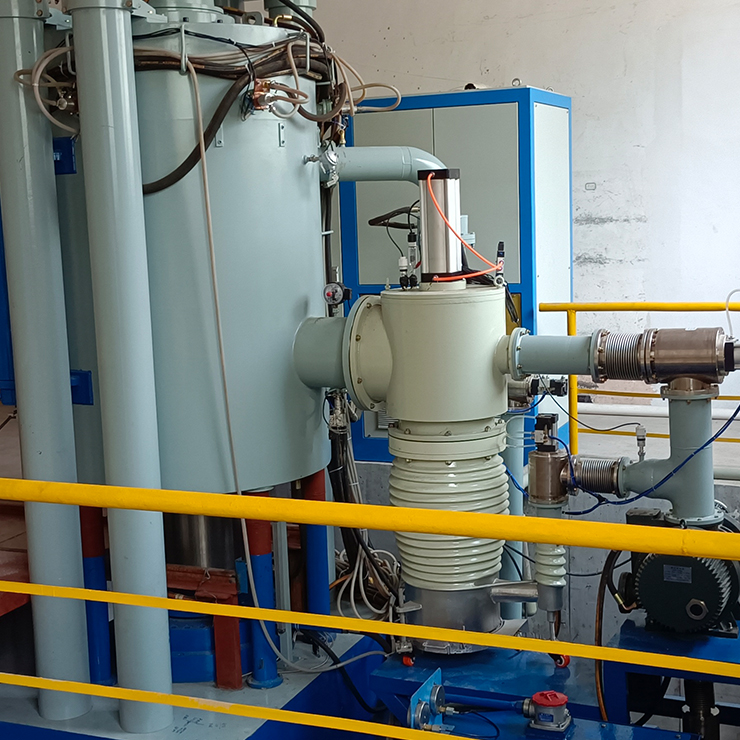

Vacuum hot pressure sintering furnace
[Usage] : The equipment is mainly used for colleges and universities, scientific research units for metal compounds, ceramics, inorganic compounds, nanomaterials, etc., under the condition of vacuum or protective atmosphere for pressure heating and sintering processing, in order to obtain consistent products, such as the production of high-precision silicon nitride ceramic bearings and silicon nitride ceramic substrate
Features:
(1) Double SUS304 furnace structure, cooling water through the middle, effectively reduce the surface temperature of the furnace body to reduce high temperature damage, reduce the impact on the environment;
(2) frame type double column support structure, using profile welding, overall processing, to ensure the reliability of equipment;
(3) the use of thermal insulation materials and thermal insulation structure, low thermal conductivity, good thermal insulation effect, even at a high temperature can effectively isolate heat, save energy consumption;
(4) Wide temperature range, heating elements of various options, such as graphite, molybdenum, tungsten, tantalum, in the appropriate protective atmosphere, the temperature can reach 2800℃, can adapt to the hot pressing sintering of different materials;
(5) Diversified vacuum system configuration, choose different levels of vacuum according to the process;
(6) Without charging and releasing system, you can choose hot pressing sintering in vacuum environment, also can choose hot pressing sintering in inert atmosphere or reducing atmosphere;
(7) Humanized configuration, both manual operation, can also achieve one-button intelligent operation;
(8) This Furnace can meet multi-purposes, can be used as a simple vacuum or atmosphere sintering furnace;
(9) diversified types, vertical upper discharge, vertical side door discharge, one-way pressure, two-way pressure and so on, arbitrary choice;
(10) This product accepts non-standard customization.
Product Specification
Model | Work Area Dimension D*H mm | Maximum Temperature℃ | Cold limit Vacuum Pa | The pressure ratio Pa/h | Rated Power Kw | Pressure T | Displacement mm | Charge Pressure Mpa |
JT-RYL-50 | Ф150*200 | 2400 | 5*10-3 | 3 | 50 | 20-200 | 0-100 | 0.05 |
JT-RYL-75 | Ф200*300 | 2400 | 5*10-3 | 5 | 75 | 20-200 | 0-150 | 0.05 |
JT-RYL-100 | Ф300*400 | 2400 | 5*10-3 | 6 | 100 | 20-200 | 0-250 | 0.05 |
JT-RYL-200 | Ф400*500 | 2400 | 5*10-3 | 6 | 200 | 20-300 | 0-300 | 0.05 |
JT-RYL-300 | Ф500*600 | 2400 | 5*10-3 | 6.5 | 300 | 20-400 | 0-350 | 0.05 |
JT-RYL-400 | Ф600*700 | 2400 | 5*10-3 | 6.5 | 400 | 20-400 | 0-450 | 0.05 |
