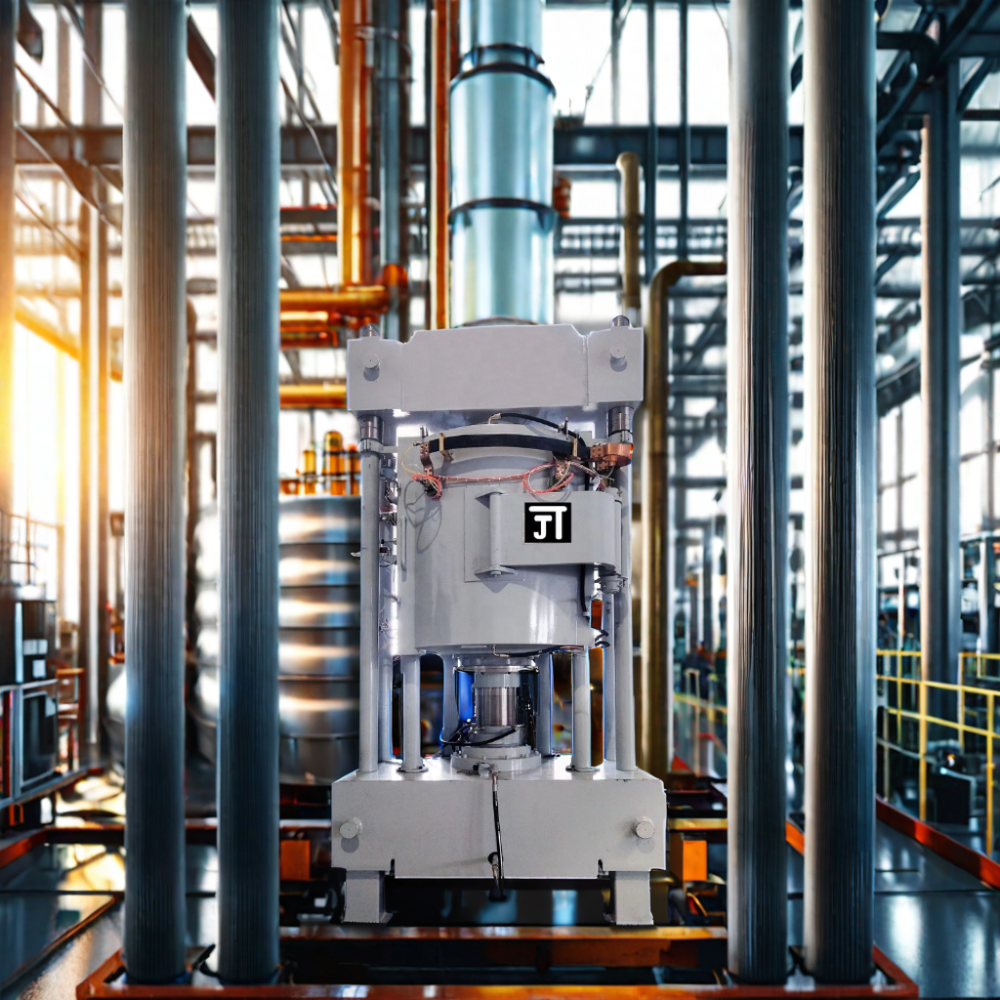

The Features And Applications of Vacuum Hot-press Sintering Furnaces

The vacuum hot-press sintering furnace is an advanced material preparation equipment that integrates vacuum environment, high-temperature heating and pressure action, and is widely used in new material research and development and industrial production. The following is a detailed introduction from two aspects: core features and main uses:

I. Core Features

The design of the vacuum hot-pressing sintering furnace centers around three core elements: "vacuum environment", "high-temperature control", and "pressure application", and features the following notable characteristics:

The vacuum environment is controllable

It can achieve a high vacuum degree (typically up to 10⁻³ to 10⁻⁵ Pa), effectively preventing the material from oxidizing, nitriding or being contaminated by impurities with air (oxygen, nitrogen, etc.) at high temperatures. It is particularly suitable for the sintering of easily oxidized materials (such as ceramics and intermetallic compounds).

2. Some devices support inert gas (such as argon) atmosphere adjustment and can flexibly switch between vacuum and atmosphere modes according to material properties.

2. The synergy of high temperature and pressure

The heating temperature range is wide, generally reaching 1000 to 2200℃ (special models can exceed 3000℃). It adopts heating elements such as graphite heating elements, molybdenum wires or silicon-molybdenum rods, and is combined with a precise temperature control system (the temperature difference can be controlled within ±1 to 5℃) to ensure temperature uniformity.

2. The pressure application methods are diverse, including unidirectional pressure application (upper pressure head), bidirectional pressure application (upper and lower pressure heads), or isostatic pressure assistance. The pressure range is typically 10 to 50MPa, and some equipment can reach over 100 mpa. Pressure is used to promote the densification of material particles, reduce sintering temperature and time.

3. The structural design is precise

1. The furnace body is made of high-temperature and high-pressure resistant materials (such as stainless steel and graphite), and is equipped with valves and pipes with excellent sealing performance to ensure the stability of the vacuum environment.

2. Most of the equipment is integrated with a computer control system, which can achieve programmed automatic control of temperature, pressure and vacuum degree, and record real-time data, facilitating process optimization and repetitive production.

4. Multi-functional adaptability

In addition to basic sintering, some models are compatible with processes such as hot pressing, diffusion welding, and powder metallurgy, meeting the preparation requirements of different materials.

2. Different specifications of furnace chambers can be designed according to the sample size (from small laboratory to large industrial grade), adapting to small-batch research and development to large-scale production.

Ii. Main Uses

Vacuum hot-press sintering furnaces, with their unique technological advantages, play a key role in multiple fields:

Preparation of ceramic materials

1. It is used for sintering high-performance structural ceramics (such as alumina, silicon nitride, silicon carbide) and functional ceramics (such as piezoelectric ceramics, transparent ceramics), reducing porosity through a vacuum environment and enhancing density and mechanical properties (such as strength and hardness) under pressure.

2. Typical applications: Ceramic cutting tools, high-temperature ceramic components, electronic ceramic elements.

2. Metal and alloy processing

It is applicable to the sintering of refractory metals (such as tungsten, molybdenum, tantalum) and their alloys, avoiding high-temperature oxidation. At the same time, it promotes the combination of powder particles through pressure to prepare high-density and low-impurity green bodies or finished products.

2. It is used for sintering metal matrix composites (such as aluminum-based and titanium-based composites) to achieve a good combination of metals and reinforcing phases (such as carbon fibers and ceramic particles).

3. Powder metallurgy products

1. Produce high-precision and high-performance powder metallurgy parts (such as gears, bearings, and hard alloy tools), reduce porosity through hot pressing process, enhance the density and mechanical properties of the parts, and lower the subsequent processing costs.

4. New material research and development

In fields such as aerospace and new energy, it is used for the research and development of new materials (such as high-temperature alloys, thermoelectric materials, and superconducting materials), and by regulating vacuum degree, temperature and pressure, the relationship between the microstructure and properties of materials is explored.

5. Diffusion welding and composite forming

1. To achieve diffusion welding of dissimilar materials (such as metals and ceramics, metals and metals), high temperature and pressure are utilized to promote the diffusion of interfacial atoms, forming a strong connection, for instance, in the welding of aero engine blades.

Summary

The core value of the vacuum hot-press sintering furnace lies in solving the problems of easy oxidation, low density and poor performance of materials in traditional sintering through the synergistic effect of "vacuum anti-pollution + high-temperature reaction promotion + pressure densification". It is a key equipment for preparing high-purity, high-density and high-performance materials. It is widely applied in high-tech fields such as aerospace, electronic information, new energy, and high-end manufacturing.
