Compared with ordinary sintering furnaces, what are the advantages and disadvantages of vacuum hot-pressing sintering furnaces?

Vacuum hot-pressing sintering furnaces and conventional sintering furnaces (such as air atmosphere sintering furnaces, box furnaces, etc.) have significant differences in process principles, performance and applicable scenarios. Their advantages and disadvantages can be compared and analyzed from dimensions such as process capacity, material performance, cost efficiency and application scope.

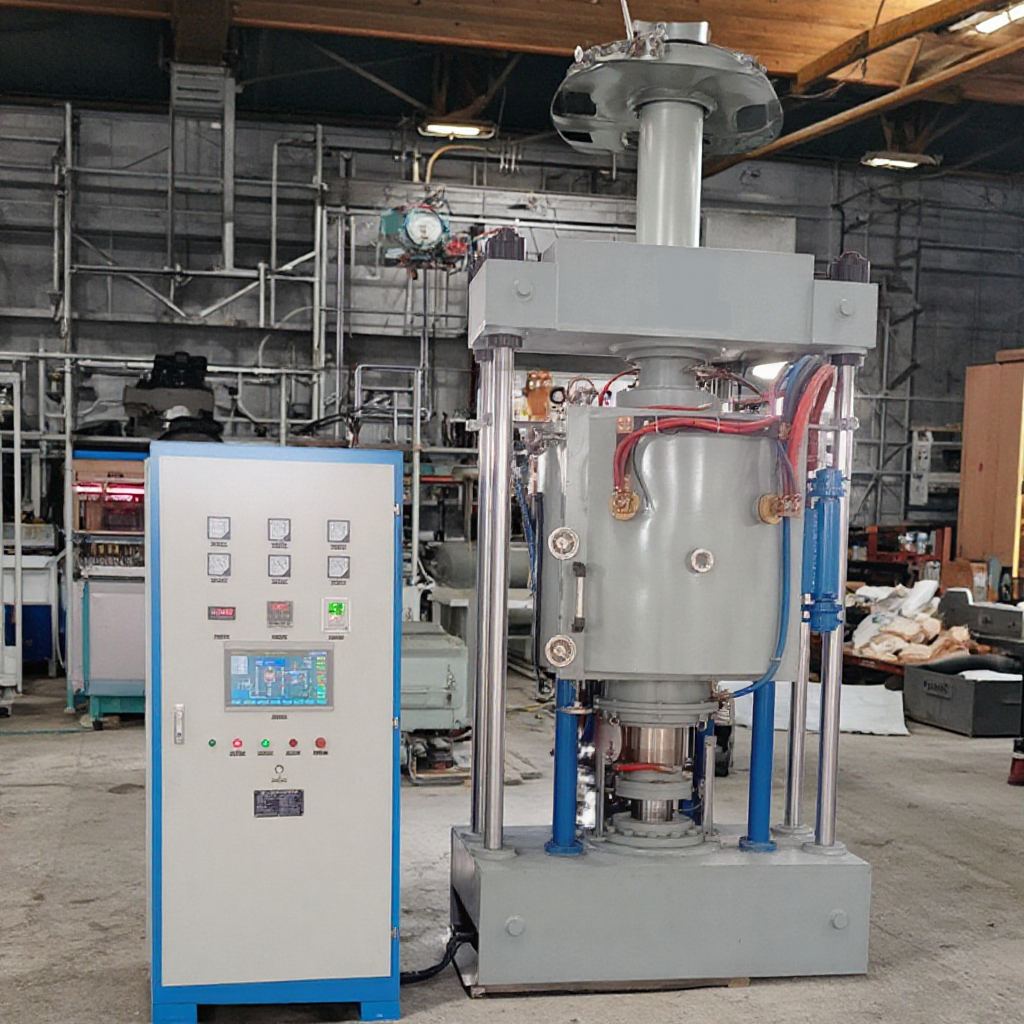

I. Advantages of Vacuum Hot-press Sintering Furnace

Compared with ordinary sintering furnaces, the core advantage of vacuum hot-pressing sintering furnaces stems from the dual effects of "vacuum environment" and "pressure coordination" :

The density and performance of the material have been significantly enhanced

1. Ordinary sintering furnaces only bond powder particles through high temperatures, which can easily lead to the formation of pores due to residual gases, and their density is usually relatively low (for example, the density of ceramics is often less than 90%). The vacuum hot press furnace can increase the density of materials to over 95% (even close to the theoretical density) through pressure-forced densification, significantly improving mechanical properties (such as strength, hardness, and wear resistance) and functional characteristics (such as electrical conductivity and light transmittance).

For example, the flexural strength of silicon nitride ceramics in a common sintering furnace is approximately 600MPa, and it can reach over 1200MPa after vacuum hot pressing.

2. Effectively avoid material contamination and oxidation

1. Ordinary sintering furnaces mostly operate in an air or inert gas atmosphere, which can easily lead to the oxidation of easily oxidized materials (such as titanium, niobium, and ceramics) at high temperatures (for instance, metals generate oxide impurities and ceramics form glass phases). The high vacuum environment (10⁻³ to 10⁻⁵ Pa) can isolate active gases such as oxygen and nitrogen, reduce the introduction of impurities, and is particularly suitable for the preparation of high-purity materials (such as single crystal ceramics and refractory metals).

3. Reduce the sintering temperature and time

1. Conventional sintering furnaces need to promote densification by increasing the temperature (usually 10% to 30% higher than the theoretical sintering temperature) or extending the time, which can easily lead to coarse grains (affecting performance). In a vacuum hot-pressing furnace, pressure can promote particle diffusion and plastic flow, reducing the sintering temperature by 100 to 300 degrees Celsius, shortening the time by more than 50%, and inhibiting excessive grain growth (such as in the preparation of nano-ceramics).

4. The range of applicable materials is wider

Ordinary sintering furnaces are difficult to handle materials that are prone to oxidation, volatilization or need to be isolated from gases (such as intermetallic compounds and rare earth ceramics). The vacuum hot press furnace can handle:

Refractory metals (tungsten, molybdenum, tantalum) and their alloys;

2. Active metal (titanium, zirconium) -based composites;

3. Materials containing low-melting-point components (to avoid component volatilization loss).

2. It can achieve composite and connection processes

Ordinary sintering furnaces can only complete a single type of sintering. The vacuum hot press furnace can simultaneously achieve hot pressing forming, diffusion welding, and dissimilar material composite (such as metal-ceramic connection and multi-layer composite material preparation), expanding the flexibility of material preparation.

Ii. Disadvantages of Vacuum Hot-press Sintering Furnaces

1. The equipment cost is high and maintenance is complex

The vacuum hot press furnace needs to be equipped with a vacuum system (vacuum pump, valve), pressure device (hydraulic/mechanical pressurization mechanism) and precise temperature control components. The initial investment is 5 to 10 times that of a common sintering furnace.

2. Vacuum seals (such as O-rings) and heating elements (graphite, molybdenum) are prone to wear and tear, and the replacement cost is high. Moreover, the vacuum system needs to be maintained regularly, and the operational complexity is higher than that of ordinary furnaces.

2. Low production efficiency and limited batch production

1. Ordinary sintering furnaces can load a large number of samples at one time (such as multi-layer shelves in box furnaces), and there is no need for complex vacuum pumping and pressure control steps, with short time consumption per piece.

2. Vacuum hot press furnaces, due to the need for vacuuming and step-by-step pressurization, have a long single furnace cycle (usually 2 to 10 hours), and are restricted by pressurization devices (such as the size of the press head), with a small single processing capacity. They are more suitable for small-batch production or research and development, but are difficult to meet the demands of large-scale industrialization.

3. The shape and size of the sample are restricted

1. The common sintering furnace has no special requirements for the shape of the sample (block, powder, and complex structural parts are all acceptable).

2. Due to the need to apply pressure in vacuum hot-pressing furnaces, the samples are usually of simple shapes (such as discs, bars, and plates), and their dimensions are restricted by the furnace chamber and the press head (large and complex parts are difficult to process). Secondary processing may be required subsequently.

4. High energy consumption

Apart from the heating energy consumption, the vacuum system (vacuum pump) and pressure device (hydraulic pump) require continuous energy consumption, and the overall energy consumption is 30% to 50% higher than that of a common sintering furnace.

Iii. Summary: Comparison of Applicable Scenarios

Dimensional vacuum hot-pressing sintering furnace, ordinary sintering furnace

Core advantages: high density, low pollution, excellent material performance, low cost, high efficiency, simple operation, and large batch size

Applicable materials: easily oxidized materials, high-performance ceramics, refractory metals and other anti-oxidation materials (such as common ceramics, some metals)

Typical applications: high-end parts (ceramic cutting tools, aviation components), general R&D parts (architectural ceramics, common powder metallurgy parts)

High economic input and high cost, suitable for high value-added products; low cost, suitable for mass-market, low value-added products

In conclusion, the vacuum hot-pressing sintering furnace is a "precision tool" for preparing high-performance and high-purity materials, but it is limited by cost and efficiency. The common sintering furnace is an "efficient device" for the production of popular materials. The two complement each other and are respectively suitable for different application scenarios.
